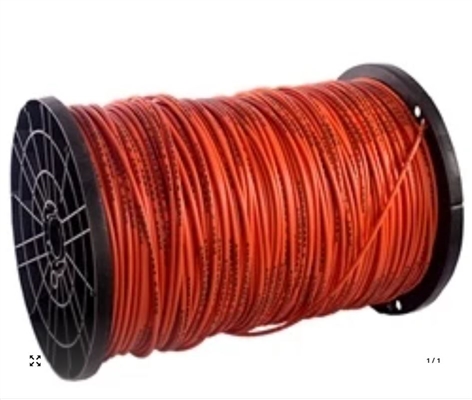

Trace-Safe 19 AWG Orange Water Block Tracer Wire 2500ft Neptco RT1800W
Trace-Safe 19 AWG Orange Water Block Tracer Wire 2500ft Neptco RT1800W

Our Price: $734.67


Product Code: NEPTCO-RT1800W
Qty:

Description

NEPTCO's RT1800W TRACE-SAFE® Water Blocking 19 AWG Orange Tracer Wire .250"X.200"

Water blocking reinforced tracer wire used for direct burial locating purposes in the telecommunications, gas, sewer or water utilities. Double insulated tin-coated solid copper conductor enables location of plastic gas lines, sewer lines, water pipes and non-metallic dielectric fiber optic cables.


Features

  • Conductor Data

    • AWG 19 AWG tin coated solid copper conductor
    • Diameter .0356" Nominal (.90 mm)
    • DC Resistance 8.5 OHMS per 1,000 feet (304 meters)
    • Tensile Strength 38,500 psi Nominal (27,342 kPa)

    Conductor Insulation Data

    • Type High Density Polyethylene
    • Inner jacket thickness .006" (.154 mm) - Black Color
    • Dielectric Constant 2.29 @ 1 MHZ

    Core Material

    • Type Woven high tenacity polyester and water blocking polyester yarns

    Outer Jacket

    • Type High Density Polyethylene
    • Overall Thickness .030” (7.62 mm)

    Overall Product Strength

    • Tensile Strength 1,800 lbs. Nominal (818 kg)
    • Crush Strength 4,200 lbs. Nominal (1909 kg)

     Durably printed with sequential footage or meter markings

  •  Conductor additionally protected by product construction
  •  Market specific coloring for easy identification
  •  Water blocking yarns
  •  High density polyethylene jackets
  •  Low elongation for enhanced worker safety , no spring back
  •  Lightweight and flexible
  •  Easy to handle and install
  •  Conductor functions at a wide range of frequencies and is compatible with any standard locating equipment
  •  Fungus resistant
  •  600 V rated per UL 1581
  •  Passes 3 meter water head test
  •  Universal connector system
