Slingco ZAD3799 Anti-Rotational Device 5000lbs

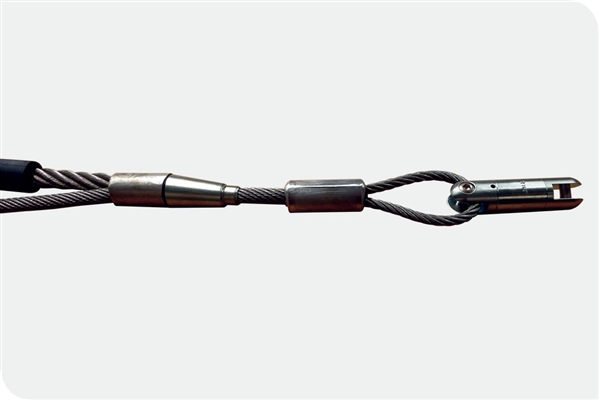

SLINGCO ZAD3799 Anti-Rotational Device 5000lbs

Alternative Views:


Our Price: $2,292.64


Product Code: SLING-ZAD3799
Qty:

Description

Anti-Rotational Device SLINGCO ZAD3799

The device prevents the cable from twisting as it travels over pulling blocks. Left uncontrolled, the optical cable’s delicate glass fibers could be permanently damaged during installation.

  • Stops cables from twisting as they pass over pulling blocks
  • For use with fiber optic and OPGW cable
  • Prevents irreparable damage to delicate fiber optics caused by cable twists during installation
  • The ARD has weighted attachments that hang down while stringing, keeping the ARD vertical to stop cable rotation
  • ARD attachments collapse in line, enabling them to travel easily over pulling blocks
  • The ARD includes one 5,000 lb swivel attached to the head of the device
Features
    • Slingco Part No. ZAD3799
    • Overall Length 29’ Approx.
    • Working load
    • (@3:1 Safety Factor)
    • 5,000 lbs
    • Length of Attachments 8’ Approx.
    • Weight of Attachment 14 lbs each Approx
