PLP FIBERLIGNŽ Lite Support (FLS) Small Cavity 4800107 .250-.280 to 4800119 .670-.699

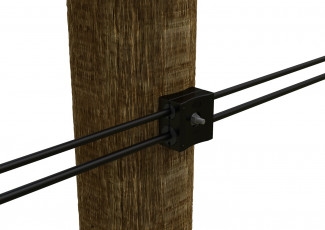

PLP FIBERLIGN® Lite Support (FLS) Small Cavity  4800107 .250-.280 to 4800119 .670-.699

Our Price: $23.90


Product Code: H-PLP-LITE-SUPPORT-SMALL


CABLE DIAMETER RANGE :


Qty:
Description

The FIBERLIGN Lite Support (FLS) system is designed to gently but firmly support All Dielectric Self-Supporting (ADSS) cable. It is intended for tangent support installations on lines that feature low voltages, very short spans and low mechanical loads.
INSER COMPONENT
Inset Part #Size For
00070257 .250-.280 S
00070258 .305-.375 M
00070216 .400-.429 A
00070217 .430-.459 L
00070218 .460-.489 L
00070219 .490-.519
00070220 .520-.549 C
00070221 .550-.579 A
00070222 .580-.609 V
00070223 .610-.639 I
00070224 .640-.669 T
00070225.670-.699 Y
H-PLP4800107 .250-.280, H-PLP4800109 .305-.375, H-PLP4800110 .400-.429, H-PLP4800111 .430-.459, H-PLP4800112 .460-.489, H-PLP4800113 .490-.519, H-PLP4800114 .520-.549,
H-PLP4800115 .550-.579, H-PLP4800116 .580-.609, H-PLP4800117 .610-.639, H-PLP4800118 .640-.669, H-PLP4800119 .670-.699
4800107, 4800109, 4800110, 4800111, 4800112, 4800113, 4800114, 4800115, 4800116, 4800117, 4800118, 4800119 FLS1-2
Features

      • Adapts to all Fiber Drop Designs
        • Rounds & Flat ADSS Profile
        • Figure 8
      • Span Lengths up to 300' (91 m)
      • NESC Heavy
        • Backbone and Drop Applications
      • Line Angles up to 20 Degrees
      • Multi-cable Options
        • Two Cable per Housing
        • Stackable Housing for 4 or more cables
      • Stringing Block
        • String-In Cable for line angles up to 10 Degrees
        • Accepts 1-1/4" (31.8mm) diameter Pull-in Hardware
      • Mounting Options
        • Accepts 5/8" (15.8mm) Through Bolt for Wood Pole
        • Accepts 3/4" (19.1mm) Wide Band for Steel/Concrete Pole
      • Small Insert or Large Insert
        • Standard Offering 1 Insert Per Assembly
        • Soft Urethane Material
      • Housing
        • Two Housing Halves
        • Hard Urethane Material
      • Optional Hardware for Banding
        • Retaining Bolt, Washer & Lock Washer
