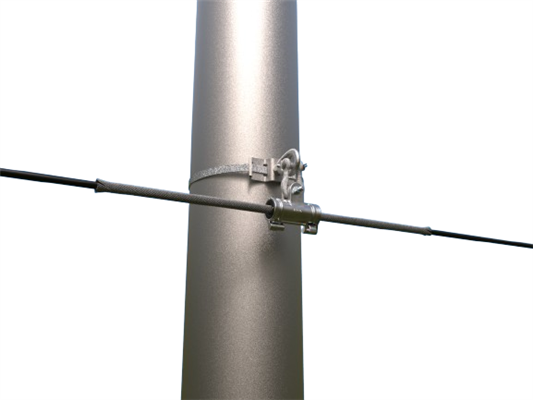

The FIBERLIGN Aluminum Suspension (FASN) with Structural Reinforcing Rods (SRR) is designed to gently, but firmly, suspend ADSS cable. Structural Reinforcing Rods (SRR) and conductive taped inserts are deployed in high-voltage environments and long span applications, as required for transmission portions of the cable network. H-PLP4470200AS 0.476"-0.500" RED , H-PLP4470201AS 0.501" - 0.550" BLUE, H-PLP4470202AS 0.551"-0.625" BLACK, H-PLP4470203AS 0.626" - 0.700" ORANGE, H-PLP4470204AS 0.701"-0.737" GREEN, H-PLP4470205AS 0.738" - 0.812" PINK
4470200AS, 4470201AS, 4470202AS, 4470203AS, 4470204AS, 4470205AS
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Vertical Load Limit The FASN has an ultimate vertical load capability of 7000 (31 kN) pounds.
- Includes cushion inserts made of a soft pliable dielectric material - grit and grounding strips are included.
- Line angels up to 30 degrees depending on cable brand.
- Rod ends are relieved to prevent gouging, nicking or scratching plastic jacket of the cable.
|
|
|
|
|
|
|
