PLP COYOTE8219XU COYOTE Dome Closure 9.5"x 28" for Ribbon, Shallow Slack Basket
PLP COYOTE8219XU COYOTE Dome Closure 9.5"x 28" for Ribbon, Shallow Slack Basket

Alternative Views:
Our Price: $400.87
SALE Price: $350.76
You save $50.11!


Product Code: H-PLPVRZCOYOTE8219XU
Qty:

Description Technical Specs Extended Information

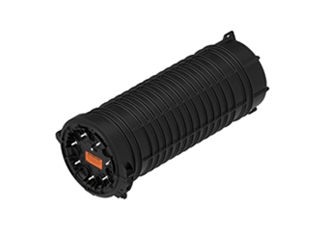

9.5" x 28" COYOTE® Dome Closure for Ribbon, Shallow Slack Basket
The COYOTE® Dome Closure offers an alternative fiber organizer to support high density splice applications within the same footprint as our existing 9.5" x 28" COYOTE Dome Closure. The new organizer architecture provides open access for fiber routing, reduces cable sheath openings and simplifies assembly.
Equipped With:
  • (1) COYOTE Dome 9.5" x 28" End Plate Organizer, Shallow Slack Basket,
  • (1) Dome,
  • (1) Gasket,
  • (1) Collar,
  • (1) Transition Tube Kit Consisting of: (1) 0.250" ID x 25" Long Tube, (1) Spiral Tube Kit Consisting of: (1) 0.375" OD x 36" Long Tube, (4) Long Strength Member Brackets, (2) 2-Hole Grommets 0.42"-0.60", (2) 1-Hole Grommets 1.00"-1.25",
  • (1) LGSTR216 LITE-GRIP® Deep-Profile, Long, Splice Tray, 216 Ct.
COYOTE® Unitube Cable Breakout Kit
Deep Metal Slack Basket Kit
COYOTE829219XU / VERIZON MMID 10796974 / SSI 11062231 - 1230
Features
  • FEATURES AND BENEFITS

  • • 7-Port segmented end plate design provides independent access to each cable port without disrupting
  • surrounding cables

  • • Tray design allows the removal from the stack to enable multiple splicers to work simultaneously

  • • Multiple tray designs support mass fusion splicing, single fusion splicing, or a combination of both

  • • Flexible grommet sealing technology supports a wide range of fl at and round cable profi les

  • • Designed and tested in accordance to Telcordia®
  • GR-771-CORE Buried, Underground, IP-68 Rated Requirements
