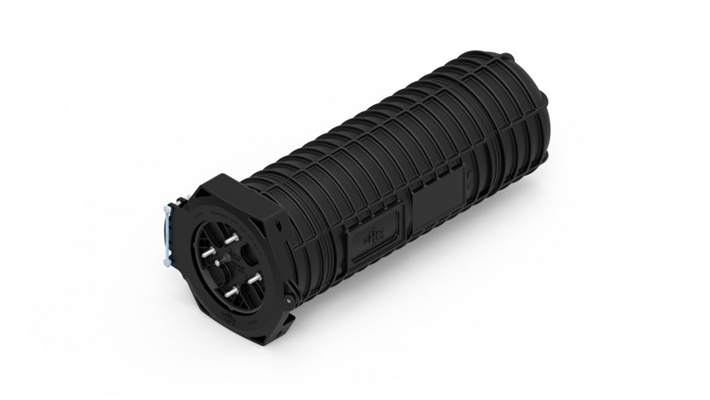

6.5" x 17" COYOTE® Dome Closure for Single Fusion, Buffer Tube Organizer
The COYOTE 6.5" Dome Closure offers two length options of 17" and 22" to support either buffer tube or ribbon fiber
applications.
Equipped With:
- (1) COYOTE Dome 6.5" x 17" End Plate Organizer, Buffer Tube,
- (1) Dome, (1) Gasket,
- (1) Collar,
- (2) Long Strength Member Brackets,
- (2) Short Strength Member Brackets,
- (2) 1-Hole Grommets 0.40"-0.60",
- (2) 1-Hole Grommets 0.60"-0.85",
- (1) 6-Hole Grommet 0.125"-0.250" and Flat Drop Cable,
- (1) 80811337 LITE-GRIP® Deep-Profile, Short, Splice Tray, and
- (1) Universal Mounting Bracket
COYOTE8217U / VERIZON MMID 10796940 / SSI 11016544 vrz1234
COYOTE®
6.5" x 17" Dome Closure Buffer
| Specifications | Buffer 8006945 | Splice Capacity (Maximum) – Single Fusion (Low Profile,
80809958),
Single Fusion (Low Profile, 80813152), Single Fusion
(Deep Profile, 80808945),
Mass Fusion (Deep Profile, LGSTR144) | 144, 216, 120, N/A | | Number of Splice Trays – 80809958, 80813152, 80808945,
LGSTR144 | 6, 6, 3, N/A | | Cable Ports1 | 4 | | Cable Diameters | 0.093" – 1.25" (2.4 – 31.8 mm) and Flat Drop | | Ground Studs | 4 | | Configuration | Butt | | Application | Direct Bury, Below Grade, Pole/Wall, Aerial | | Ingress Protection | In accordance to Telcordia® GR-771-CORE,
Buried, Underground; IP-68 | | Size2 | 8.6" W x 17.9" L (218 x 455 mm)
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Features and Benefits
• 4-Port segmented end plate design provides independent access to each cable port without disrupting- surrounding cables
• Tray design allows the removal from the stack to enable multiple splicers to work simultaneously
• Multiple tray designs support mass fusion splicing, single fusion splicing, or a combination of both
• Flexible grommet sealing technology supports a wide range of flat and round cable profiles
• Flame-retardant kits available
• Designed and tested in accordance to Telcordia® GR-771-CORE Buried, Underground, IP-68 Rated Requirements
|
|
|
|
|
|
|
