Clevis Eye, 1/2" Eye Thickness, 15K Strength PLP CE-5259
PLP CE-5259 Clevis Eye, 1/2" Eye Thickness, 15K Strength

Alternative Views:


Our Price: $12.50
SALE Price: $10.94
You save $1.56!


Product Code: H-PLP-CE-5259
Qty:

Description

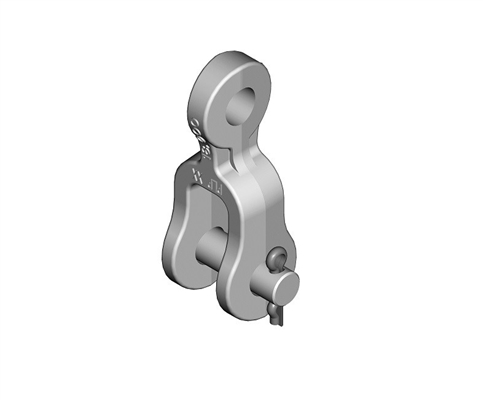

Preformed Line PRODUCTS CE-5259 Clevis Eye 15,000 LBF. Strength
  • Body: Ductile Iron, Hot Dip Galvanized
  • Hardware: Galvanized Steel
  • Cotter Pin: Stainless Steel
Conductor Diameter Range:
  • Minimum: .272"
  • Maximum: .750"
General Dimensions:
  • (A): 7/16" (11.2 mm)
  • (B): 1-1/2" (38.1 mm)
  • Wide Clevis (C): 13/16" (20.6 mm)
  • Eye Thickness (D): 1/2" (17.5 mm)
  • Hole Dia. (E): 11/16" (17.5 mm)
  • (F): 1-1/2" (38.1 mm)
  • Center to Center (L): 3-1/8" (79.4 mm)
  • Pin Diameter: 5/8" (16 mm)
  • Overall Length: 4-5/8"
  • Vertical Ultimate Strength lbf. (KN): 15,000 lbf (47)
