PLP 800016006 COYOTEŽ HD (High-Density) Dome Closure for Ribbon, Shallow Slack Basket for Cables Greater Than 1.25" OD

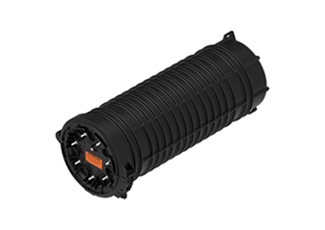

PLP 800016006 HD Coyote Dome Closure 9.5" x 28"

Alternative Views:


Our Price: $450.11
SALE Price: $403.95
You save $46.16!


Product Code: H-PLPVRZ800016006
Qty:

Description Technical Specs

COYOTEŽ HD (High-Density) Dome Closure for Ribbon, Shallow Slack Basket for Cables Greater Than 1.25" OD

The COYOTE Dome Closure offers an alternative fiber organizer to support high density splice applications within the same footprint as our existing 9.5" x 28" COYOTE Dome Closure.
Equipped With:
(1) COYOTE HD Dome End Plate Organizer, Shallow Slack Basket, (1) Dome, (1) Gasket, (1) Collar, (1) Split Braided Sleeving Kit Consisting of: (12) 0.375" ID x 20" Long Tubes, (1) Transport Tube Kit Consisting of: (6) 0.25" ID x 36" Long Tubes, (4) Long Strength Member Brackets, (2) Extended Strength Member Brackets for Large Central Strength Members, (2) 1-Hole Grommets 0.60"-0.85", (2) 1-Hole Grommets 0.85"- 1.00", (2) 1-Hole Grommets 1.00"-1.25", and (2) 1-Hole Grommets 1.25"-1.38"
COYOTEŽ Unitube Cable Breakout Kit

COYOTE800016006 /
VERIZON MMID 10825637 - HD0
Features
    • Maximum Splice Capacity of 1728 or 3456 depending on cable construction
    • 7-Port segmented end plate design provides independent access to each cable port
      without disruption to surrounding cables
    • Two splice tray designs to support mass fusion splicing, single fusion or a combination
      of both
    • Modular tray design permits trays to hinge upward or be removed from the stack to allow
      multiple splicers to work simultaneously
    • Grommet range now accepts fiber optic cable entry of up to 1.38" in diameter
