Formed Wire Deadend for Guy Strand 3/8", 0.337 - 0.394" (ORANGE) Hubbell FWDE1107

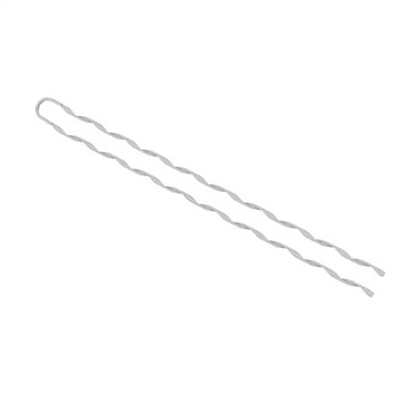

Hubbell FWDE1107 Formed Wire Deadend for Guy Strand 3/8", 0.337 - 0.394" (ORANGE)

Our Price: $4.38


Product Code: H-FWDE1107
Qty:

Description Technical Specs

Hubbell FWDE1107 Formed Wire Deadend for Guy Strand 3/8", 0.337 - 0.394"
Formed Wire Deadends provide a fast and economical method for deadending support guy strand. Easily applied by hand without tools, they are made of the same material as the strand to which they are applied and are designed to hold the full-rated strength of the strand. For use with left-hand lay strand.
  • For HSS, EHS, Common Siemens-Martin; Utilities and Bell System Strand grades.
  • Zinc plated (B-coat) EHS steel construction;
  • 15400lb (68.5KN) maximum RBS
  • FWDE will hold a minimum of 100% of the guy wire rated breaking strength (RBS).

Features
  • Specifications:
    • 15400 lbs. (68.5 KN) Maximum RBS
    • Color Code: Orange
    • Nominal Guy Wire Size: 3/8" (3W or 7W)
    • No. of Wires: 6
