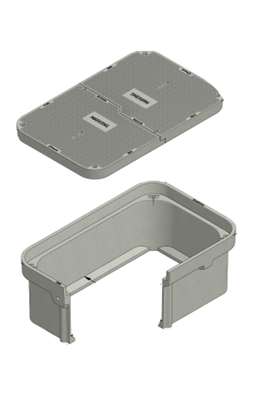

Polymer Concrete Vault 30X48X24"
H-VAULT Martin 30 X 48 X 24 PC TIER 22

Our Price: $1,348.88


: Call for Availability
Product Code: H-VAULT-304824-PC
Qty:

Description

***Please call 1-800-256-5186 for a current quote.

Rectangular Enclosure, Polymer Concrete – Height options: 24″
COVER
Style: Flush 2-Piece
Material: Polymer Concrete
Model: 30” x 48”
Weight: Tier 15: 110 lbs. (per half), Tier 22: 169 lbs. (per half)
Std. Fasteners: 1/2-13 Stainless Steel Hex Head, Bolt, Washer and Floating Nut
Options: Logos and Special Markings
Surface: Slip Resistant
Performance: ANSI/SCTE-77, Tier 15 or Tier 22*
LOAD RATING / NOTES

Actual load rating is determined by the box and cover combination.

BODY
Material: Polymer Concrete
Model: 30” x 48”
Weight: 18” Depth: 179 lbs., 24” Depth: 223 lbs., 36” Depth: 307 lbs.
Wall Type: Straight
Performance: ANSI/SCTE-77 Tier 22
