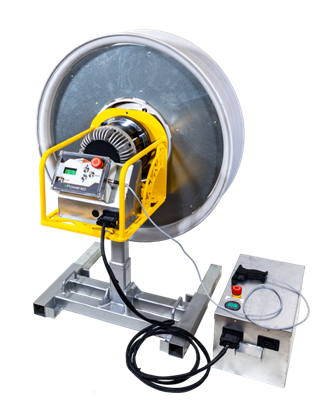

GMP 71490 eCapstan Battery Powered Fiber Optic Cable Puller
GMP 71490 eCapstan Battery Powered Fiber Optic Cable Puller

Our Price: $18,666.67



: Pre-Order
Product Code: GMP-71490


Capstan Options:


Hitch Mount or Ground Stand:


Qty:
Description

GMP battery powered fiber optic cable puller is designed for the under-ground placement of fiber optic cable. It uses a rechargeable lithium Iron Phospate Battery with an adjustable limit to the pulling tension of the capstan.
GMP fiber optic cable puller comes complete with an electric motor, battery, controller and a hand held trigger remoter control. Also the choice of a 32 or 42 in capstan.
  • NO engine, NO emissions
  • Adjustable pulling force and speed
  • Electronically controlled pulling setpoints from 0-800+ lbs
  • 15,000 ft of cable pulling on a single battery charge*
  • 1 Person Operation
  • Data recording of pull force during operation
  • Hitch mount or ground stand capable
  • Use 32” or 42” capstan
  • Quick push button operation to set capstan diameter, max pulling force, and pulling speed
  • Battery life well over 2000 full charging cycles (5+ Years)
  • Uses safe LiFePO4 technology a 32 or 42 in capstan
*Estimated based on average pull and average speed, exact distance per charge may vary
Features
  • Operating Capacities


    Max Pulling Load: 900 lbs. (3558 N)@ 100lb setpoints
    Max Pulling Speed: 300 feet/minute (76m/min)
    Battery Life Max Pull: 8500' @ 600 lbs. & 175 feet/minute

    Battery


    Battery Type: LiFePO4
    Battery Size: 48V, 40Ah
    Charge Time: 8hr
    Height: 11 in (280mm)
    Length: 15 in (381mm)
    Width: 9 in (229mm)
    Weight: 43 lbs. (19.5kg)

    Dimensions with Ground Stand and 42 in Capstan


    Height: 53 in (1346mm)
    Length: 46.75 in (1187mm)
    Width: 48.5 in (1232mm)
    Weight: 326 lbs. (147kg)

    Dimensions with Hitch Mount and 42 in Capstan


    Height: 43 in (1092mm)
    Length: 53 in (1346mm)
    Width: 24 in (609mm)
    Weight: 258 lbs. (117kg)
