GMP Tornado Cable Blowing Cable Collets (6-34mm) & Guides (6-12mm)
GMP Tornado Cable Blowing Cable Collets (6-34mm) & Guides (6-12mm)

Our Price: $509.29



Product Code: GMP-TORNADO-CABLE-GUIDE


CABLE GUIDES:

Qty:
Description

GMP Tornado Cable Blowing, Cable Guides
Always use a Cable Collet on the cable exit side. If you use either 6-9 mm or 9-12 mm cable, use a Cable Guide on the cable in feed side, for anything larger than these sizes.

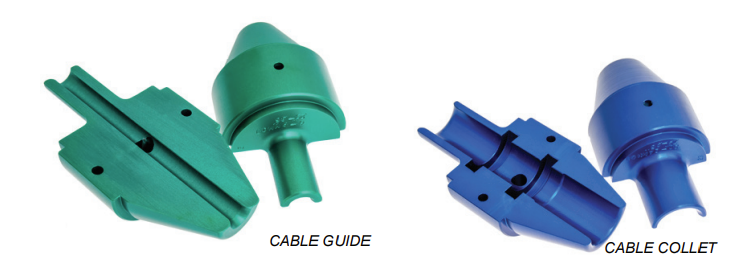

CABLE COLLETS (6-34 MM) & GUIDES (6-12 MM)
  • 89081 6-9 MM (.23 - .35") (1 Collet REQ) (exit side) Collet & guide used together
  • 89082 6-9 MM (.23 - .35") (1 Guide REQ) (in feed side) for this size cable

  • 89083 9-12 MM (.35 - .47") (1 Collet REQ) (exit side) Collet & guide used together
  • 89084 9-12 MM (.35 - .47") (1 Guide REQ) (in feed side) for this size cable

  • 89091 12-16 MM (.47 - .63") (2 Collets REQ) Same collet used on both in feed and exit side
  • 89092 16-20 MM (.63 - .79") (2 Collets REQ)
  • 89101 20-24 MM (.79 - .95") (2 Collets REQ)
  • 89102 24-28 MM (.95 - 1.10") (2 Collets REQ)
  • 89107 28-32 MM (1.10 - 1.26") (2 Collets REQ)
  • 89116 32-34 MM (1.26 - 1.34") (2 Collets REQ)
89081, 89082, 89083, 89084, 89091, 89092, 89101, 89102, 89107, 89116
