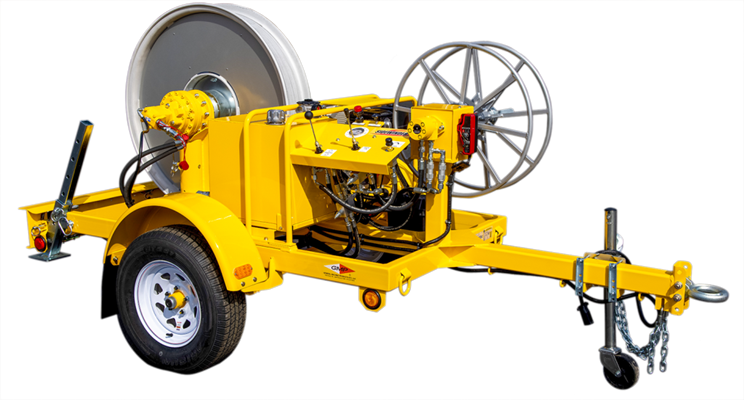

The winch is mounted on a sturdy all-steel fabricated chassis. It is equipped with torsional suspension axles, stabilizing prop legs, a front telescopic jockey wheel and a tow bar with a Lunette Ring. At 1500 lbs., the unit is easily pulled by a standard pickup truck.
The power source is a Commercial grade Honda GX390 gasoline engine which drives the fixed displacement tandem mounted hydraulic pumps. The hydraulic pump is attached to the engine via a bell housing and flexible coupling. One pump powers a hydraulic motor, through an in-line planetary gearbox, to the capstan while the second pump drives the rope take-up drum through a hydraulic motor. The hydraulic oil tank is fitted with double filtration protection, sight glass and filler/breather.
The hydraulic oil tank is fitted with double filtration protection, sight glass, and filler/breather.
The rope take-up drum is removable and can be split to enable removal of rope. The capstan can be rotated through 90° on a swivel bracket from the inline working position to the transverse transit position when in tow. When the winch is in the working mode the rear props are extended out of the chassis to provide greater stability.
