Formed Wire False Deadend 3/8", 0.337 - 0.394" (ORANGE) Hubbell FWFDE1107

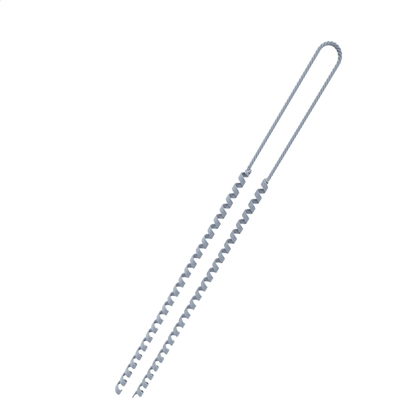

Hubbell FWFDE1107 Formed Wire False Deadend 3/8" (ORANGE)

Alternative Views:
Our Price: $6.71


Product Code: HUBFWFDE1107
Qty:

Description Technical Specs

Hubbell FWFDE1107 Formed Wire False Deadend for Guy Strand 3/8", 0.337 - 0.394"

False Deadends provide the fastest and most economical method for false deadending strand. They are easily applied by hand without tools and without the need to cut the strand. They are made of the same material as the strand to which they are applied and are designed to hold the full-rated strength of the strand. For use with left-hand lay strand.
    • For HSS, EHS, Common, Siemens-Martins, utilities and bell system strand grades
    • Zinc-Aluminum coated steel wire - BFDE
    • BFDE formed wire false deadends are designed for use on BezinalŽ or other common Zn-Al coated steel strand.
    • False deadends will hold a minimum of 100% of the guy wire rated breaking strength (RBS).
    Features
    • Specifications:
      • 1,5400 lbs. (68.5 KN) Maximum RBS
      • Nominal Guy Wire Size: 3/8" (3W or 7W)
      • Color Code: Orange
      • No. of Wires: 6
