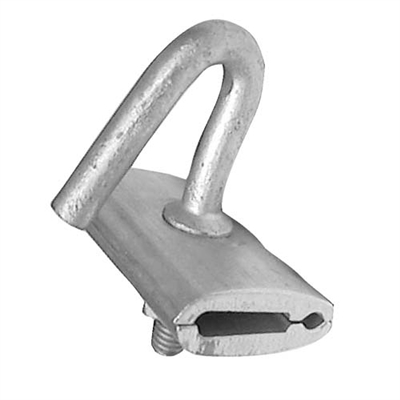

Figure 8 Span Clamp (.148"-.250") Allied Bolt 7024
Figure 8 Span Clamp (.148"-.250")  Allied Bolt 7024

Our Price: $1.07


Product Code: H-7024
Qty:

Description

  • Used in drop cable installations as an attachment to figure 8 cable for accepting the bail of Drop Wire Clamps.
  • Jaws are extruded and stamped from 5052 H-34 Aluminum.
  • Clamp is comprised of a specially shaped bolt, two aluminum jaws, and a square nut.
  • Bolt and nut are formed from Grade 2 Steel.
  • Bolt and nut are hot dip galvanized to meet ASTM Specification A153, Class B3.
