05632 EZE-MAN CONFINED SPACE SYSTEM 50′ ELK RIVER 05632

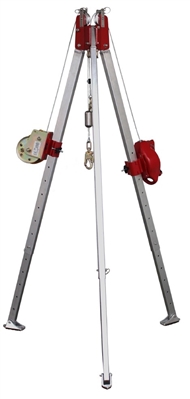

ELK RIVER 05632 EZE-Man Confined Space Manhole Retrieval System 50'

Our Price: $3,673.61


Product Code: ELK-05632
Qty:

Description

Elk River is the field-proven leader in tripod entry and rescue systems. Confined space Entry and Rescue Systems are designed for lowering and lifting personnel into and out of confined spaces where a tripod system is required. This system is Man-Rated to 310 lbs.

*Elk River 25999 Two Leg Bridle with 30" Spreader Bar (YOKE) is NOT INCLUDED*
*Elk River 42559 Universal Retrieval Harness is NOT INCLUDED*
Elk River's Universal Series Harness has the perfect fit for all your needs. The Universal full body harness combine the simplicity of easy functional design with the economy of one size fits many users. Designed to fit most workers in the range of 130-350 lbs. This versatile and useful universal fit harness features spring-loaded adjustment buckles
on the shoulder straps for easy adjustment and a comfortable custom fit.
Features:
  • Five D-rings: at back, hips, and shoulder
  • Fits Sizes Medium to 2-XL
  • Man rated to 400 lbs.
  • Mating buckle on chest strap
  • Tongue buckles on leg straps
  • Shoulder adjuster
  • Used with Elk River's 05632 Manhole Retrieval System
Features:
  • 50′ Fall Arrest SRD
  • Winch with 65′ Galvanized wire rope
  • Powder Coated Cast Aluminum Tripod head assembly
  • Aluminum Alloy Tripod leg assembly
  • Height adjust to 7.52′
  • Maximum Diamateris 52″
  • Length is 6’2″ Folded
Features
  • Features:
    • Five D-rings: at back, hips, and shoulder
    • Fits Sizes Medium to 2-XL
    • Man rated to 400 lbs.
    • Mating buckle on chest strap
    • Tongue buckles on leg straps
    • Shoulder adjuster
    • Used with Elk River's 05632 Manhole Retrieval System
    Features:
    • Tripod Head: Powder Coated Cast Aluminum; contains 2 spring loaded pulleys and 2 eye bolts
    • Legs: Cast Aluminum; auto lock in the open position; spiked feet pivot for soft or hard surfaces; foot-strap is not required
    • Winch: Galvanized and Carbon Steel; Galvanized Wire 65'; Auto Lock Brake; Steel Swivel Eye Snaphook
    • Fall Arrest Block w/ Recovery: Aluminum Housing; Galvanized Wire Rope 50'; Steel Swivel Eye Carbiner, Emergency Recovery
    • Fall Arrest Block: Thermoplastic Housing; Galvanized Wire Rope 50'; Swivel Steel Hook
    • Height: Maximum Headroom 7' 5"
    • Diameter Inside of Feet: Maximum 52'
    • Length: Collapsed 6' 2"
    • Application Use: General / Construction / Industrial
    • Components Meet or Exceed: EN795 EN1496 CLASS B EN360 ANSI Z35.1-2007
