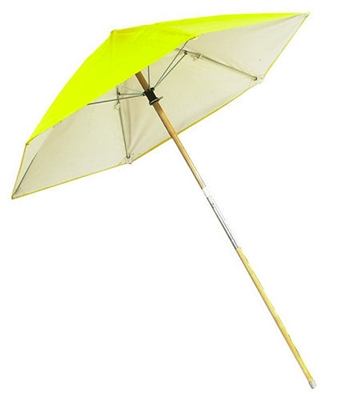

Use the Dielectric Umbrella when working near power conductors to help reduce potential sources of electrical shock (see O.S.H.A. statement below)

A tough plastic 68” (173cm) diameter umbrella cover is colored safety yellow on top (custom company logos available upon request)

A reflective white underside cuts down on the interior heat absorption and is vinyl-coated; nylon rib-end pockets keep the frame from tearing the cover

Self-sealing waterproofed, waxed stitching, and improved construction using a nylon sleeve and rib retainers for attaching the frame’s six (6) collapsible fiberglass ribs

The ribs connect at a ring-type lock that slides along the pole to open and close the umbrella. To lock the ring when open, just slide it over the set pin in the pole and rotate it.

The 43” (109cm) long wooden upper pole has a male ferrule so you can attach the 29” (74cm) long wooden lower pole for a full height of 6’ (1.83M)

DANGER

The D Umbrella can conduct electricity. Look out for power wires in your work space and keep this product well away from potential sources of electric shock. ANY accessories are not recommended for use with the Dielectric umbrella (P/N 70352).

O.S.H.A. Safety-related Work Practices 1910.335 Safeguards for personnel protection

(2) General protective equipment and tools. (i) When working near exposed energized conductors or circuit parts, each employee shall use insulated tools or handling equipment if the tools or handling equipment might make contact with such conductors or parts. If the insulating capability of insulated tools or handling equipment is subject to damage, the insulating material shall be protected.
