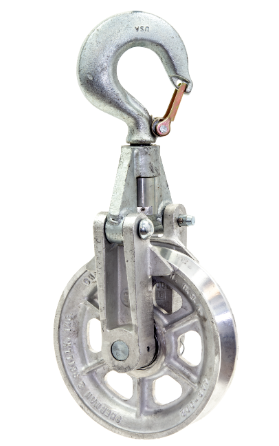

The 9511 block, or big little block, is little in overall length and weight but big in sheave and load capacity.
Side opening for ease in placing in hoisting line. Safety locking pin permits easy opening, positive locking and is captive to blocks,
no parts to drop or lose. Frame of high strength aluminum alloy, ribbed for extra strength and rigidity.
Integral guard prevents wedging of lines. Sheaves mounted on anti-friction ball bearings are available with polished aluminum,
neoprene lined, urethane lined, or ductile iron. Urethane lining recommended when wire rope hoisting lines are to be used.
Snatch Block
Designed for Overhead Ground Wires, Ideal for use with Transformer Gin
Size: 6"
Wire OD: 3/4"
Load capacity: 3,000 Ibs
Swivel safety Hook
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features

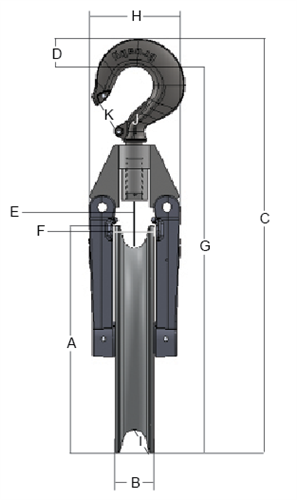

| Outside Sheave Dia. in. | Rim Width in. | Total Overall Height in. | Hook Thickness in. | Throat Height in. | Throat Width in. | Hanging Length in. | Overall Width in. | Groove Radius in. | Hook Height in. | Hook Width in. | | Size | A | B | C | D | E | F | G | H | I | J | K | | 6 | 6 | 1 1/2 | 4 1/2 | 27/32 | 1 13/16 | 1 1/2 | 11 1/8 | 4 1/4 | 7/16 | 3 31/32 | 31/32
|
|
|
|
|
|
|
|
