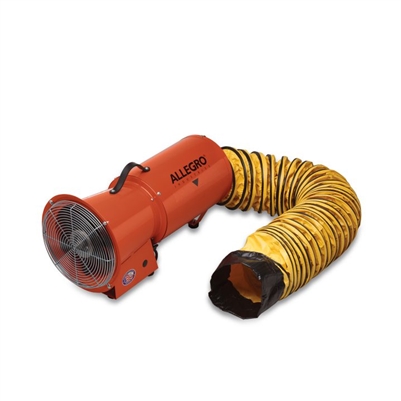

Allegro 9514-25 8" Axial AC Metal Blower w/ Canister & 25' Ducting
Allegro 9514-25 8" Axial AC Metal Blower w/ Canister & 25' Ducting

Our Price: $811.77


Product Code: ALL-9514-25
Qty:

Description

Engineered for convenience, this 8” axial blower is an all-in-one ventilation system. The design allows ducting to collapse into a built-in canister for easy storage. The unit can also be stored vertically to use a minimum amount of space. Includes blower, built-in storage canister and or 25 feet of ducting. Certified to CSA STD C22.2 No 113. Air delivery certified CEESI.
Flow Rates:
  • Free Air CFM (m3 /hr): 1275 (2166.23)
  • One 90° Bend CFM (m3 /hr): 661 (1123.04)
  • Two 90° Bend CFM (m3 /hr): 582 (988.82)
Features
  • Construction:
    • Epoxy powder coated in “safety orange”
    • Flange on intake side for optional inlet adapter
    • 18 gauge cold rolled steel housing
    • 4 gauge steel enclosed panel to protect electrical components
    • Welded motor mount construction
    • Steel/chrome plated grill
    • Handle made of 3-ply rubber belting and equipped with 4 feet
    Motor:
    • HP: 1/3 HP
    • Certifications: UL Recognized, CSA Certified
    • Voltage/Hz: 120V AC, 60Hz Single Phase
    • RPM: 3200
    • Current Draw: 3.0A
    • Cord: 6’ (1.82m) AWG 16/3 SJTW 105C 300V neoprene medium duty
    • Switch/Plug: Inline ON/OFF, integrated on cord, NEMA 5-15P 125V
    Fan:
    • Glass reinforced polypropylene (PPG) six blade fan with aluminum hub
    • Moving fan mounted 1 5/8” (4.12cm) from grill for safety, 5/16” (.79cm) grill gap
    Ducting:
    • Retractable, non-collapsible design
    • Single-ply, PVC coated, vinyl and polyester materials, temp. resistant up to 180°F (82.2°C)
    • Yellow color with black weather-strip and integrated nylon straps
    • Class 1 hard drawn spring steel wire helix that meets ASTM 227 specs
    Blower Dimensions:
    • Length: 36" (91.4 cm)
    • Width: 13 5/8" (34.6 cm)
    • Height: 15" (38.1 cm)
    • Weight: 40 lbs.
