74 series Stringing Block 14" High Strength Aluminum Sherman Reilly 700775

Home > Aerial Lineman Tools > Stringing Block >

Alternative Views:

Our Price: $1,025.56

Product Code: SHER-74-14-700775

Qty:

Description

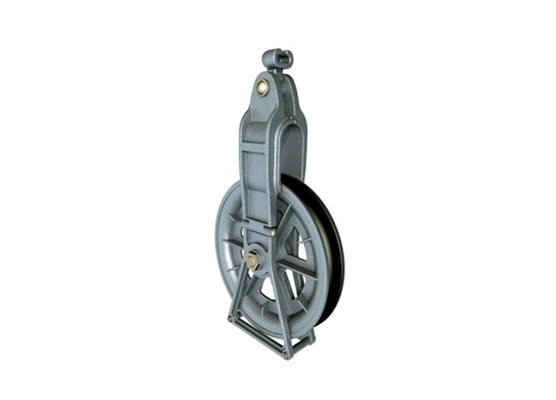

Sherman Reilly 74 series 700775 14" High Strength Aluminum Stringing Block
The 74 series single conductor stringing block is used mostly for new-line construction. It offers a conductor guard, which is an integral part of the aluminum alloy frame. This allows for the conductor to only come in contact with smooth aluminum surfaces. Should the conductor or pulling line come out of the sheave groove, the smooth contoured conductor guards will guide it back into the sheave groove. This virtually eliminates the chance of the conductor, pulling line, or pilot line, wedging between the sheave and the side frame.
Specification:

Outside Sheave Diameter: 14 1/2"
Rim Width: 2 1/8"
Bottom Groove Diameter: PG2: 12" , Other3: 9 1/2"
Point of Connection to bottom of groove: 9-1/2"
Throat - Height: 5-1/2" , Width: 2-3/8"
Overall Length: 23-7/16"
Max Outside Width: 5-1/8"
Radius Bottom Groove: 21/32"
Max Working Load: 7,500 lbs.

*ONE BLOCK PER PURCHASE
