6-1/2" Wedge Clamp Conductor .250"-.414" MSI 7187
6-1/2" Wedge Clamp Conductor .250"-.414" MSI 7187

Our Price: $4.59


Product Code: H-7187
Qty:

Description

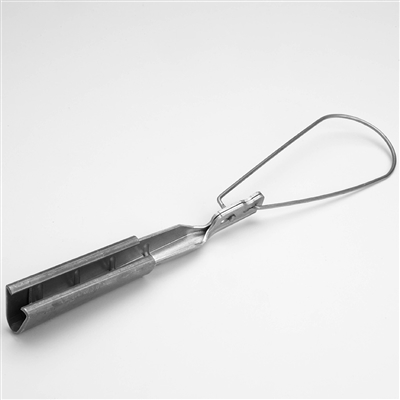

MSI H-7187, 6-1/2" Wedge Clamp, is mechanical holding device used for strain relief in service applications. It has solid stainless bails that are used on eye hooks and insulators with a diameter larger than 1.5". This clamp is designed for low tension applications only, and also has a mechanical working load of 1,200 lbs.
Specifications/Applications:
  • Bail Size: 6-1/2"
  • Material: Solid Stainless Steel
  • Conductor Diameter Range: 0.250" - 0.414"
  • ACSR ASTM-B232: 1/0 - #4
  • AAAC ASTM-B399: 1/0 - #4
  • AAC ASTM-B231: 2/0 - #2
