1-1/2” SQUARE HUB ANCHOR – 7,000 FT-LB 10" INSTALLATION TORQUE H-D1104-7

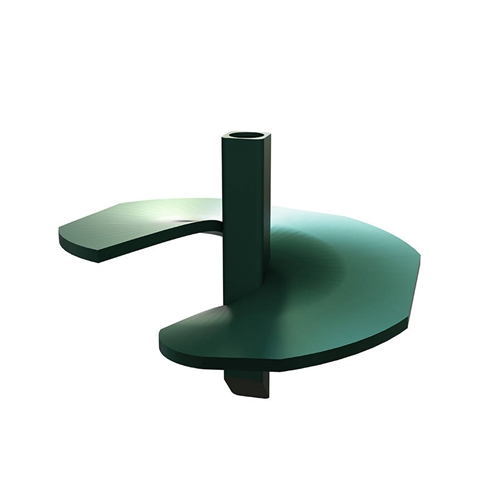

1-1/2” SINGLE SOLID SQUARE HUB ANCHOR 10" HELIX POWER HUB ANCHOR – 7000 FT-LB INSTALLATION TORQUE H-D1104-7

Alternative Views:
Our Price: $65.82


Product Code: H-D1104-7
Qty:

Description

1-1/2” SINGLE SOLID SQUARE HUB ANCHOR 10" HELIX POWER HUB ANCHOR – 7000 FT-LB

  • Installation is performed using a power digger. An anchor wrench fits over the square hub and a torque measurement device is required to determine proper installation.
  • Correct installation is achieved only when the anchor is installed using the appropriate torque for the particular soil and anchor type (see reference charts).
  • Proper anchor selection depends on the type of soil and guying requirements.
  • Installation torque is usually measured using a device connected in series with the wrench, digger, and Kelly Bar during installation.
*To be used with 7ft 1" D100, 3.5ft 1" D10031, or D75 3/4" 12632 Pisa rods only.
Features
    • Holding strength per soil class with 3/4" rod:
      • Soil Class 2: 34000 lbs (Limited by rod strength)
      • Soil Class 3: 27000 lbs (Limited by rod strength)
      • Soil Class 4: 22500 lbs
      • Soil Class 5: 17500 lbs
      • Soil Class 6: 14500 lbs
      • Soil Class 7: 10000 lbs
    • Holding strength per soil class with 1" rod:
      • Soil Class 2: 34000 lbs
      • Soil Class 3: 27000 lbs
      • Soil Class 4: 22500 lbs
      • Soil Class 5: 17500 lbs
      • Soil Class 6: 14500 lbs
      • Soil Class 7: 10000 lbs
