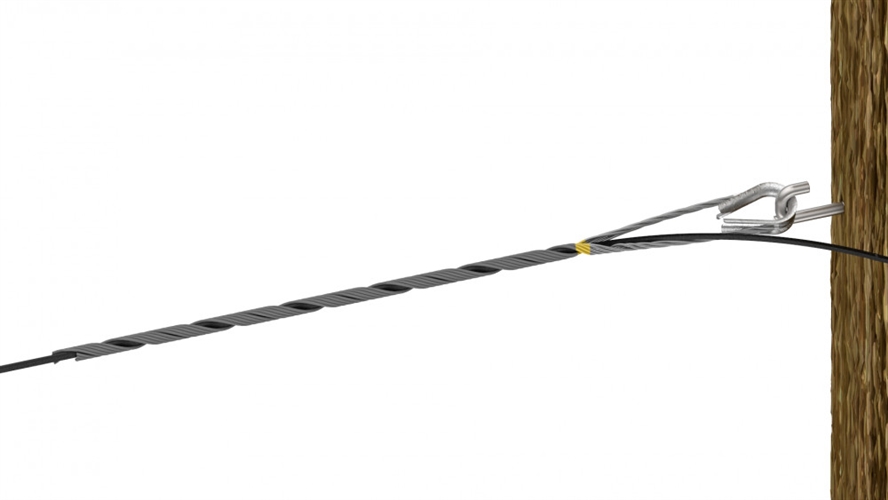

The FIBERLIGNŽ ADSS Drop Cable Dead-End is able to secure the soft pliable surface of a drop cable without causing attenuation.
Dead-End effectively transfers the axial load on the cable at the end of the Dead-End legs to a low uniform radial compression near the Dead-End loop.
This transition of force is distributed over the length of the product thus allowing secure holding capability with minimized pressure on the cable or messenger.
H-PLP288811269 - .361-.370, H-PLP288811274 - .351-.360, H-PLP288811285 - .251-.260, H-PLP288811337 - .301-.310, H-PLP288811350 - .321-.330, H-PLP288811352 - .341-.350, H-PLP288811353 - .371-.380, 288811269, 288811274, 288811285, 288811337, 288811350, 288811352, 288811353
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Accepts round and flat profile ADSS drop cables
- Span lengths up to 300' NESC heavy
- Line angles up to 20 degrees
- Multi-cable options
- Short loop design standard
- Long loop design for multi-cable
- Unbalanced load
- 100 To 200 lbs. Depending on cable dia.
- Corrosion Resistant Materials
- Relieved Rod ends - safe against cable jacket
- Elastomer Coating for soft pliable interface
|
|
|
|
|
|
|
