The Telescoping Torque Tube Kit Hydraulic Auger makes
Little Beaver Hydraulic Earth Drills perfect for work along highways.
You can attach it to any equipment with auxiliary hydraulic
connections to extend your reach. The bumper-mounted swivel
bracket and telescoping torque tube provide 180-degree
maneuverability up to 11 feet from the rear bumper.

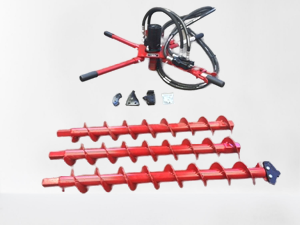

Little Beaver The LB-1 kit consist of:
- HDL-210 Two man handle with 10 cu" displace Hydraulic motor 200 RPM.
- 9092-M one piece Torque Tube, short.
- 9054-4X36 Extension, Snap-on, 4X36.
- 4X42-SSC Auger, Snap-on, Carbide Point.
- 9093-A Torque Tube Bracket, Wiggle Joint for NPTT, incl. Mounting Bolts.
- 9027 Point, Standard.
- 3012-2 Bolt, HEX NC, 3/8 X 1 pltd GR 5.
- 9027-KEP, Nut, KEP NC, 3/8 pltd. (Nut w/ Lock Washer)
- 9023-4, Blade, 4 inches.
- 9024, Bolt Hex NC, 1/4 X 7/8 pltd. GR 5.
- 9026-KEP, Nut, KEP NC, 1/4 pltd. (Nut w/ Lock Washer)
- 9023-C4RT, Blade, Carbide 4" Ripper Teeth.
- Requires a Hydraulic Power Pack or truck with a Hydraulic Tool Circuit
|
|
|
 |
|
 |
|
